SD2570W
Pavers

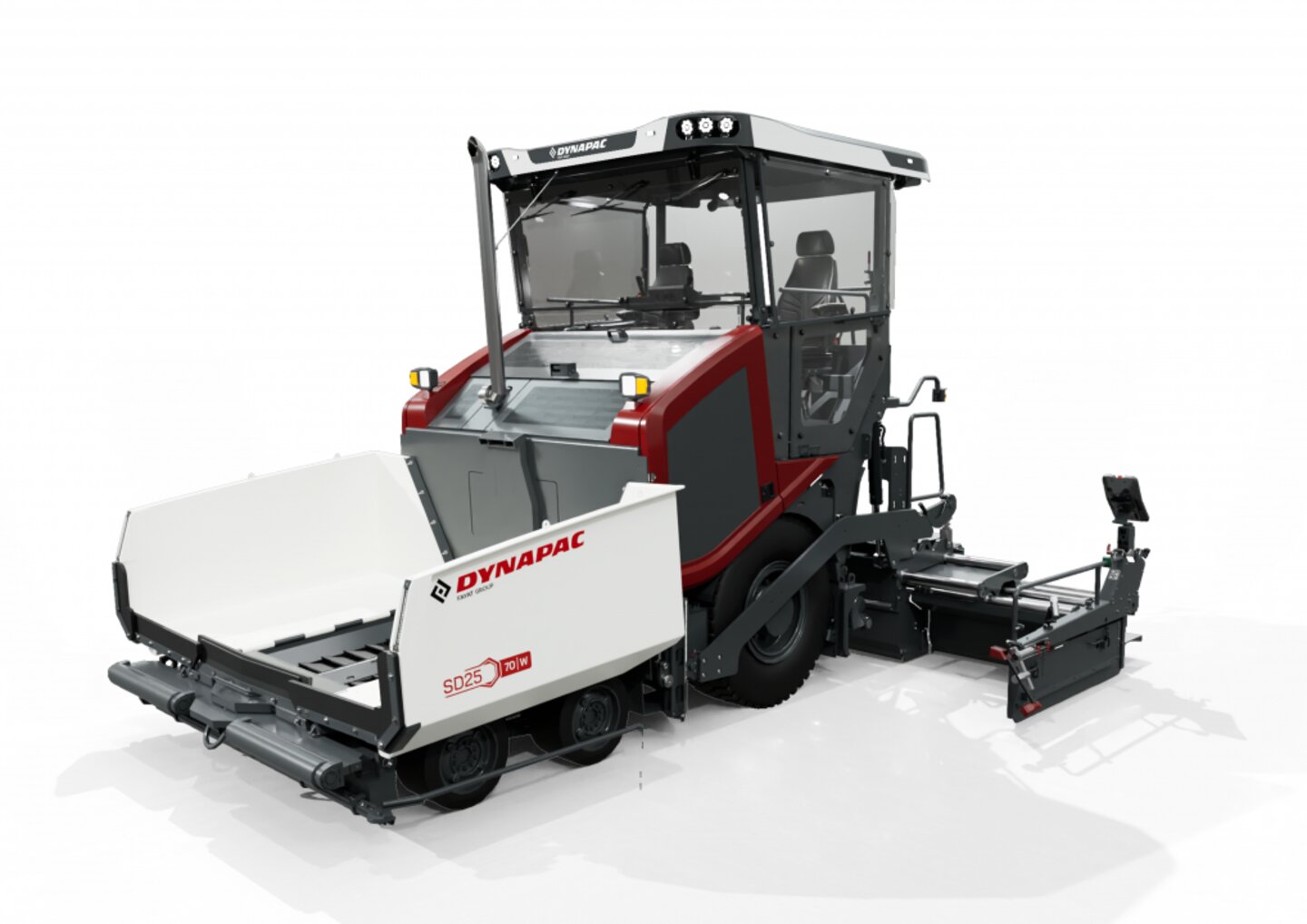

Dynapac SD2570W
Basic paving width
8.36ft
Max. layer thickness
11.8in
Technical Specifications
Dynapac SD2570W | Pavers
| Basic paving width |
2.55m
8.36ft
|
| Max. layer thickness |
300mm
11.8in
|
| Weight |
18500kg
18.5t
|
| Manufacturer / model |
Cummins B6.7-C173
Cummins B6.7-C173
|
| Emissions according to |
EU Stage V
EU Stage V
|
| Rated power, SAE J1995 |
129 kW @ 2200 rpm
172.9hp @ 2200rpm
|
| Peak power |
145 kW
194hp
|
| Average fuel consumption |
9.45 l/h
2.49gal/h
|
| After treatment |
DOC + DPF + SCR
DOC + DPF + SCR
|
| Manufacturer / model |
Cummins QSB 6.7-C173
Cummins QSB 6.7-C173
|
| Emissions according to |
EU Stage IIIA
EU Stage IIIA
|
| Rated power, SAE J1995 |
129 kW @ 2200 rpm
172.9hp @ 2200rpm
|
| Peak power |
145 kW
194hp
|
| Average fuel consumption |
9.45 l/h
2.49gal/h
|
| Conveyor control |
Proportional with paddle sensor
Proportional with paddle sensor
|
| Conveyor type |
Dual conveyor, reversible
Dual conveyor, reversible
|
| Conveyor width |
2x655 mm
2 x 2.14ft
|
