L120 Electric
L120 Electric
L120 Electric
Electric & Charging solutions

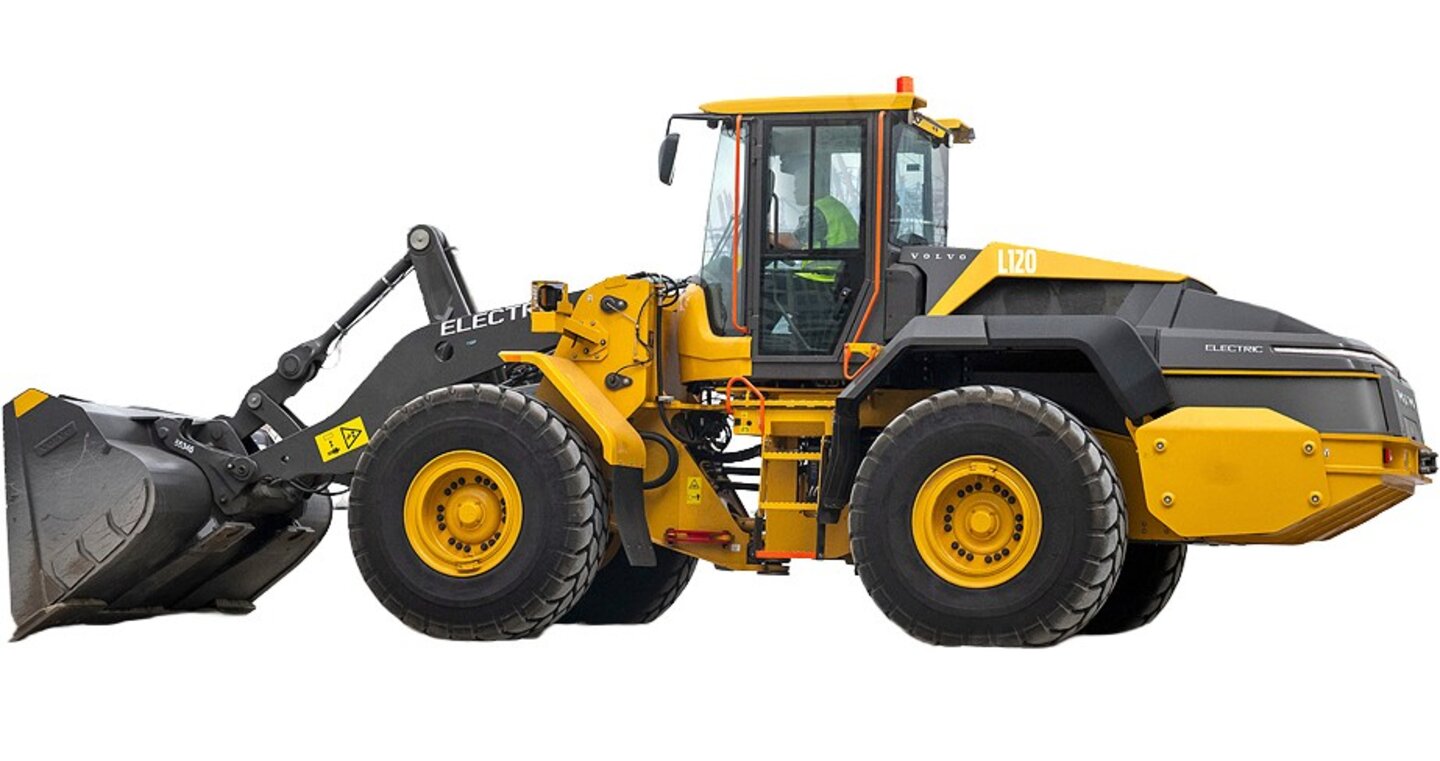

Volvo L120 Electric
Operating weight
19 700 - 21 000Â kg
Bucket capacity
3.3 - 5.5 m³
Battery capacity
282 kWh
Technical Specifications
Volvo L120 Electric | Electric & Charging solutions
| Static tipping load at full turn |
13 000Â kg
28 660Â lbs
|
| Bucket capacity |
3.3 - 5.5 m³
4.3 - 7.2 yd³
|
| Operating weight |
19 700 - 21 000Â kg
43 431 - 46 297Â lbs
|
| Breakout force |
172Â kN
38 667Â lbf
|
| Electric motor |
PMSM
PMSM
|
| Rated power |
228 kW
228 kW
|
| Battery Type |
Lithium Iron Phosphate (LFP)
Lithium Iron Phosphate (LFP)
|
| Battery voltage |
600 V
600 V
|
| Installed battery capacity |
282 kWh
282 kWh
|
| Usable battery capacity |
268 kWh
268 kWh
|
| DC charging capacity |
165 kW
165 kW
|
| Fast charging (from 20% to 80%) |
Up to 165 kW in 2 hours
Up to 165 kW in 2 hours
|
| Indicative runtime (depending on application) |
5-9 hours
5-9 hours
|
| Connector type |
CCS2
CCS2
|
| Tyres |
23.5R25
23.5R25
|
