SD1800W
Straatstenen

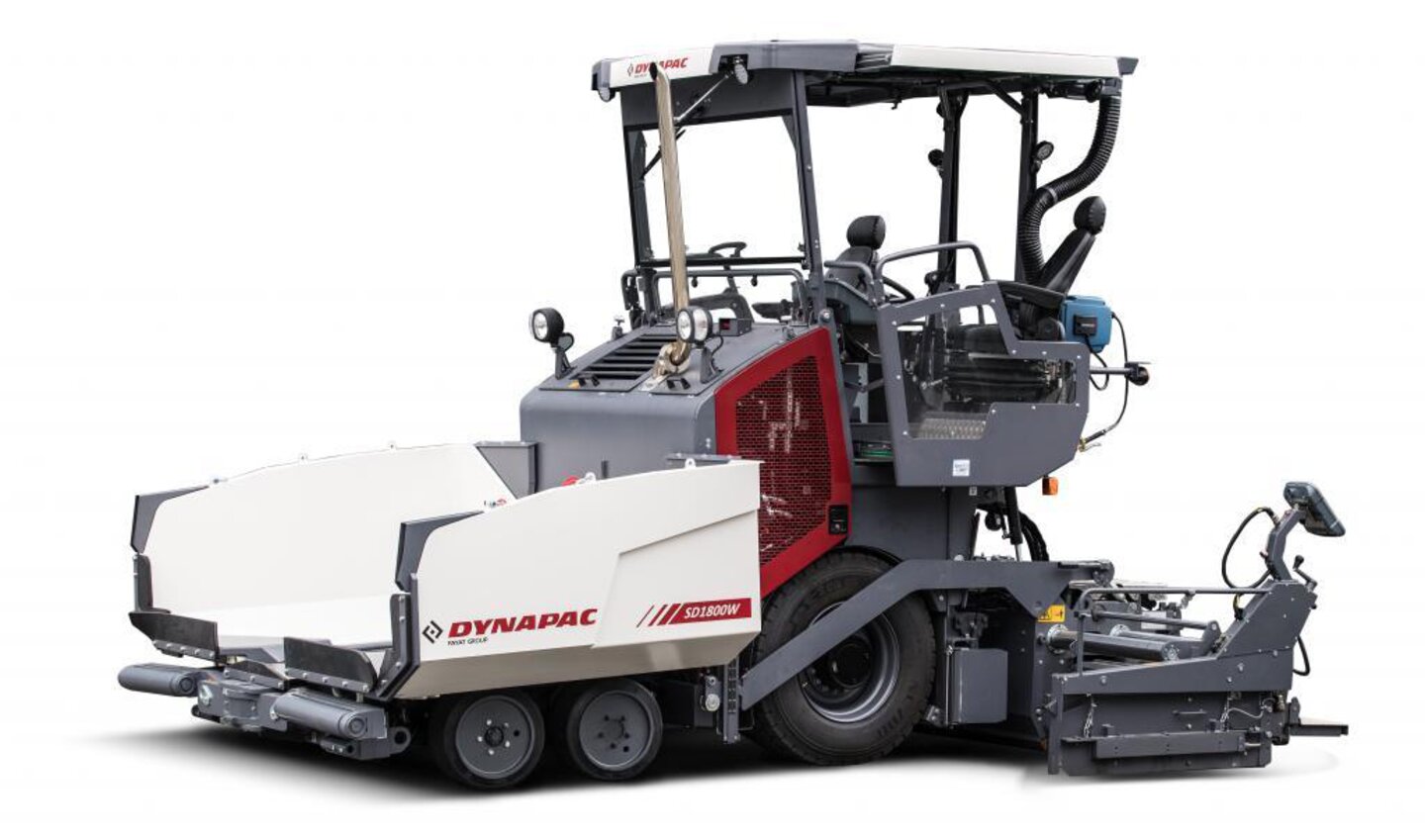

Dynapac SD1800W
Standaard bestratingsbreedte
5.74 ft
Max. laagdikte
7.87in
Technische specificaties
Dynapac SD1800W | Straatstenen
| Standaard bestratingsbreedte |
1.75m
5.74 ft
|
| Max. laagdikte |
200mm
7.87in
|
| Gewicht |
10500kg
10.5t
|
| Max. bestratingssnelheid |
25 m/min
82 ft/min
|
| Rrijsnelheid |
15 km/h
9.32mph
|
| Fabrikant / model |
Deutz TD 2.9 L4
Deutz TD 2.9 L4
|
| Emissies volgens |
Stage V / Tier 3
Stage V / Tier 3
|
| Nominaal vermogen |
55.4 kw / 54 kw @2200 rpm
74.29 hp / 72.4 hp @ 2200rpm
|
| Elektrisch systeem |
24 V
24 V
|
| Operationele controles |
Pave Manager 2.0
Pave Manager 2.0
|
| Platform |
Extendable roof, slidable seat station, sliding/tilting control panel, swivel seat
Extendable roof, slidable seat station, sliding/tilting control panel, swivel seat
|
| Transportbandbesturing |
Proportional speed control, Both sides driven independently, Reversible
Proportional speed control, Both sides driven independently, Reversible
|
| Type transportband |
Dual bar feeder
Dual bar feeder
|
| Breedte van de transportband |
700 mm
2.29ft
|
