SD1800We
Straatstenen

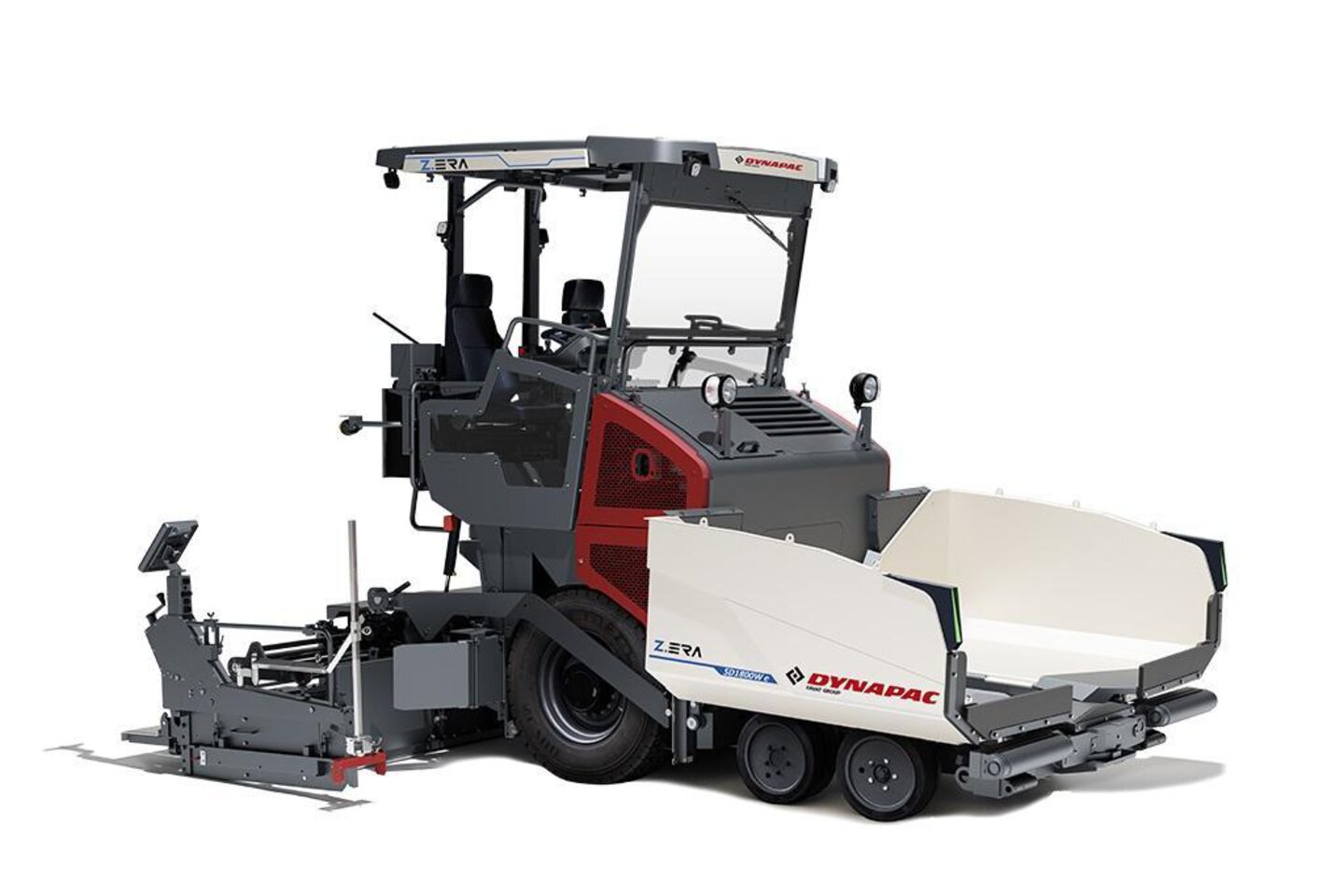

Dynapac SD1800We
Standaard bestratingsbreedte
5.74 ft
Max. laagdikte
N/A
Technische specificaties
Dynapac SD1800We | Straatstenen
| Standaard bestratingsbreedte |
1.75m
5.74 ft
|
| Max. laagdikte |
N/A
N/A
|
| Massa (incl. standaard dekvloer) |
10300kg
10.3 t
|
| Max. bestratingssnelheid |
25 m/min
82 ft/min
|
| Rrijsnelheid |
15 km/h
9.32mph
|
| Operationele controles |
Pave Manager 2.0
Pave Manager 2.0
|
| Platform |
Extendable roof, slidable seat station, sliding/tilting control panel, swivel seat
Extendable roof, slidable seat station, sliding/tilting control panel, swivel seat
|
| Transportbandbesturing |
Proportional speed control, Both sides driven independently, Reversible
Proportional speed control, Both sides driven independently, Reversible
|
| Type transportband |
Dual bar feeder
Dual bar feeder
|
| Breedte van de transportband |
700 mm
2.29ft
|
| Motortype |
Permanent Magnet Synchronous Motor (PMSM)
Permanent Magnet Synchronous Motor (PMSM)
|
| Motorvermogen bij 3000 tpm |
55 kW
73.75hp
|
| Type batterij |
Lithium-ion
Lithium-ion
|
| Nominale accuspanning |
700V
700V
|
| Spanning van de hulpaccu |
24 V
24 V
|
| 6 - 80% @ 80kW (DC) |
~40 min
~40 min
|
| 6 - 80% @ 400V 22kW (AC) |
~3 hours
~3 hours
|
